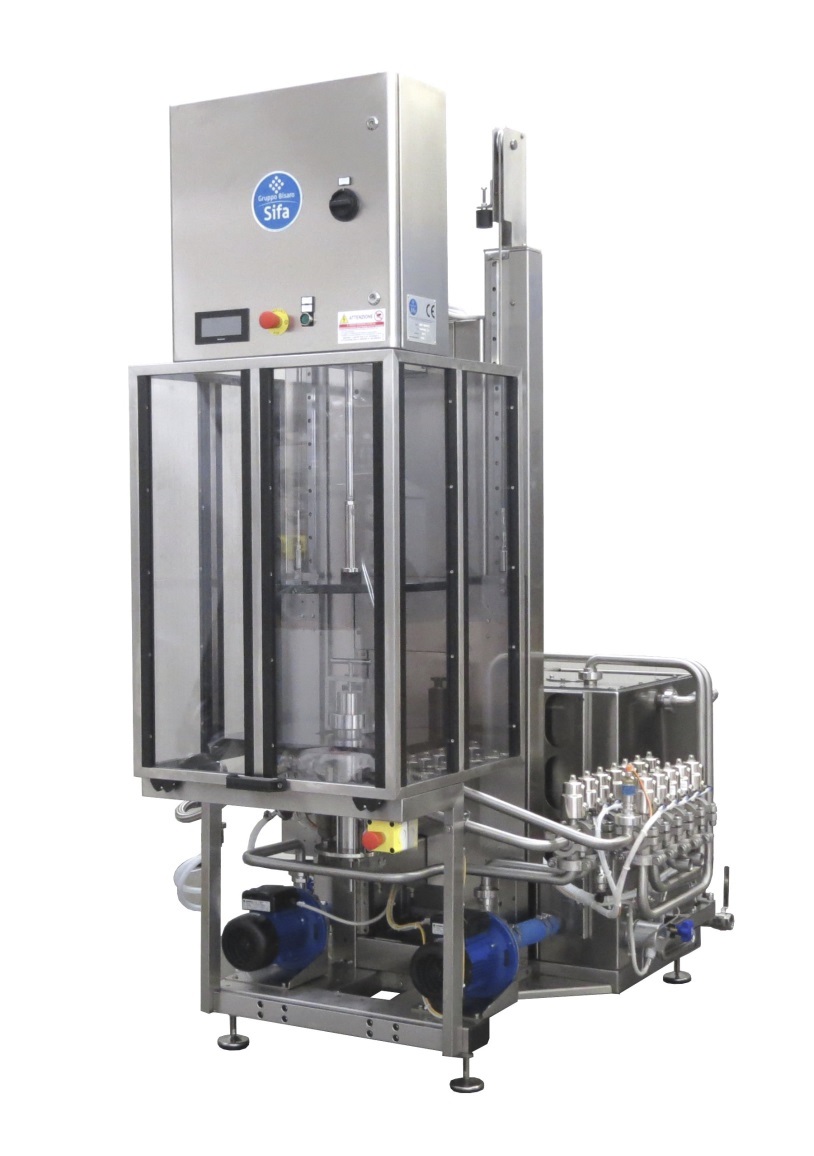

DUAL MOREKEGS COMPACT 01S
Product characteristics:
| Keg-filling range: | 10-30L |
| Filling heads: | 1 |
| Liter-counter accuracy: | ±0.20% |
| Average filling accuracy: | ±1.5% |
| Resistance to sanitization: | resistant to chemicals, water and steam |
Production
- Hourly Production (depends of type of keg and work cycle: PET-kegs 45/55, stainless steel kegs 16/19
Construction materials
- Construction Material: Aisi 304 L stainless steel
- Material in contact with the liquid: Aisi 304/316 L stainless steel &
EPDM/PTFE/Silicone
Dimensions and weight
- Height of work table (mm): 850 - 870
- Dimensions WxDxH (mm): 1200x1600x2350
- Weight (kg): 430
Electricity
- Power when filling PET kegs (kW): 0,5
- Power when filling stainless steel kegs (kW): 1,5
- Resistance power (stainless steel kegs): 4,5
- Number of phases: 3/PE
- Voltage (Volt AC): 400
- Frequency (Hz): 50
Consumption
- Max. product flow rate (l/h): 3600
- Max. product pressure (bar): 3 (PET-kegs), 2-2,5 (stainless steel kegs)
- Air pressure (bar): 6
- Air consumption (N l/minute): 62 (PET-kegs), 200 (stainless steel kegs)
- Sterile air pressure (bar): 6 (PET-kegs)
- Sterile air consumption (N l/minute): 17 (PET-kegs)
- Nitrogen / CO2 pressure (bar): 6
- Nitrogen / CO2 consumption (N l/minute): 113 (PET-kegs), 67 (stainless steel kegs)
- Water pressure (bar): 3
- Water consumption (L/h): 150 (PET-kegs), 400 (stainless steel kegs)
- Water flow rate (l/h): 1800 (PET-kegs), 3600 (stainless steel kegs)
- Steam pressure (bar): 2 (PET-kegs), 2,5 (stainless steel kegs)
- Sterilization steam (kg/h): 12
- Heating steam (kg/h): 24 (stainless steel kegs)
For additional information about product, please contact Customer Service: info@keg-exchange.com
